Dockerized Node.js Application

Container Execution Layer | Platform Engineering Project

Built, containerized, and executed a Node.js application in a reproducible Docker environment, producing a CI/CD-ready container artifact. This project focuses on containerization as the execution foundation for cloud-native applications.

Docker Image: rajesharigala/node-web-app:v1-arm64 GitHub: docker-ml-app-no-ui

Docker Image: rajesharigala/node-web-app:v1-amd64 GitHub: Breast-Cancer-Flask-UI

Project Summary

Comprehensive Project Overview

Project Category

Containerization & Execution Foundation

Industry/Domain

Platform Engineering / Cloud Infrastructure

Cloud-Native Application Containerization (Execution Layer)

Project Focus

DevOps-focused containerization project

Docker-based containerization as execution artifact for CI/CD pipelines

Key Technologies & Concepts

Core Docker & Containerization Technologies

Docker & Containerization Keywords

Docker Engine / Docker Desktop Dockerfile (Image Blueprint) Base Images (Slim / Official Images) Image Build (docker build) Image Tagging & Versioning Docker Images & Layers Container Runtime (docker run) Port Mapping & Networking Environment Variables (ENV) CMD vs ENTRYPOINT Detached & Interactive Modes Container Lifecycle Management Docker Registry (Docker Hub / ECR) Image Push & Pull Immutable Container Artifacts Stateless Container Design Docker Compose Kubernetes (Container Orchestration)

Problem & Objective

What problem did this project solve?

Problems Solved

Eliminated environment and runtime dependency inconsistencies across development and deployment machines
Removed reliance on local Node.js installation by encapsulating the application within a Docker container

Primary Objectives

Package the Node.js application and its runtime into a single, portable Docker image
Enable consistent execution of the application across local, CI/CD, and cloud environments

Solution & Architecture

Architectural Overview

Solution Overview

The solution involves creating a Docker container that packages the Node.js application, its runtime, and all dependencies into a single, portable unit that can run consistently across different environments.

Stateless container design enables horizontal scaling when deployed under an orchestrator (e.g., Kubernetes). Containerized runtime ensures consistent and reliable execution across environments.

The Docker image serves as an immutable artifact that can be versioned, stored in a registry, and deployed consistently across development, testing, and production environments.

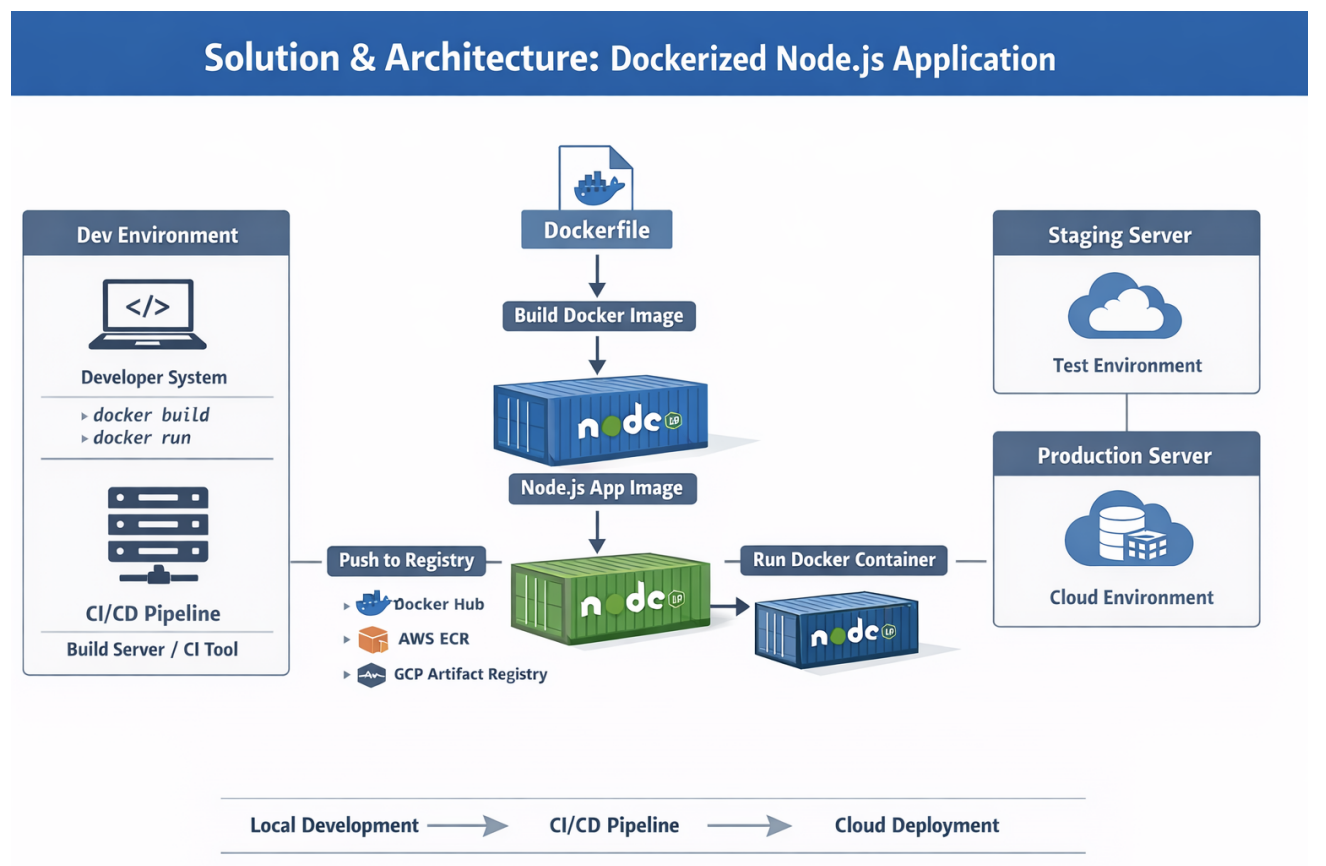

Docker Containerization Architecture Diagram

1

Source Code

2

Dockerfile

3

Docker Image

4

Container Runtime

5

Container Registry

Key Components

Docker Engine / Docker Desktop
Dockerfile (Image Blueprint)
Node.js Application Runtime
Docker Image & Container
Container Registry (Docker Hub)
Cloud Platform: None (local Docker environment; cloud-ready via container registry)

DevOps Details

DevOps Implementation Focus

AI/ML Type or DevOps Focus

DevOps-focused project
Docker-based containerization used as the execution artifact for CI/CD pipelines
No AI/ML components involved

Pipeline & Automation

No AI/ML models involved
Implemented Docker-based build, run, tagging, and registry push workflow
Reusable execution artifact for CI/CD automation

Tools & Monitoring

CI/CD & Containerization Tools:

Docker Engine / Docker Desktop
Docker CLI
Docker Hub (Container Registry)
Container-ready for CI/CD and orchestration integration

Monitoring & Optimization:

Container runtime logs accessed via Docker logs and terminal output
Image versioning and tagging used for traceability and controlled releases

Skills & Technologies Used

Technical Proficiency Demonstrated

Primary Skills

Docker & Containerization - Intermediate
Node.js Application Runtime - Intermediate
Linux Command Line - Intermediate

Secondary Tools / Frameworks

Docker Desktop
Docker Hub
Git / GitHub
Linux-based OS (macOS / Ubuntu environment)

Programming Languages

Configuring Dockerfile
Node.js web app (provided by developer)

Cloud & DevOps Tools

Docker Engine Docker CLI Docker Hub (Container Registry)

Dockerfile Implementation

Step-by-Step Docker Configuration

Dockerfile Code

                        # Use the node:12 image as the base image

                        FROM node:12

                        # Set the working directory within the container to /app

                        WORKDIR /app

                        # Copy the package*.json files from the host file system to the
                            container at the path /app

                        COPY package*.json ./

                        # Run the npm install command to install the required
                            dependencies

                        RUN npm install

                        # Copy all files from the host file system to the container at the
                            path /app

                        COPY . .

                        # Set the environment variable PORT to 8080

                        ENV PORT=8080

                        # Expose port 8080 to allow incoming connections

                        EXPOSE 8080

                        # Specify the command to run when the container starts up

                        CMD ["npm", "start"]

Difference between CMD and ENTRYPOINT: At runtime, CMD can be overridden if necessary but not ENTRYPOINT. For this project, CMD is used to specify the default command to run the application.

Architecture & Dockerfile Mapping

Architecture Component	Dockerfile Instruction	Purpose
Base Runtime Environment	FROM node:12	Defines Node.js runtime inside the container
Application Workspace	WORKDIR /app	Sets isolated working directory for the app
Dependency Definition	COPY package*.json	Copies dependency metadata into image
Dependency Installation	RUN npm install	Installs Node.js dependencies inside container
Source Code Packaging	COPY . .	Copies application code into the image
Runtime Configuration	ENV, EXPOSE	Configures environment variables and network access
Application Startup	CMD ["npm", "start"]	Starts the Node.js application at container runtime

Docker Commands Reference

Essential Docker CLI Commands

Docker CLI Command	Explanation
docker version	Displays Docker client, server, and engine version details
docker images	Lists all Docker images available locally
docker build -t <image-name>:<tag>	Builds a Docker image from the Dockerfile in the current directory
docker pull <image-name>:<tag>	Pulls an image from a container registry
docker run -it -p <host-port>:<container-port> <image>:<tag>	Creates and runs a container interactively with port mapping
docker run -d -p <host-port>:<container-port> <image>:<tag>	Runs a container in detached mode
docker ps	Lists currently running containers
docker ps -a	Lists all containers (running and stopped)
docker stop <container-id>	Stops a running container
docker start <container-id>	Starts a stopped container
docker logs <container-id>	Fetches logs from a container
docker exec -it <container-id> /bin/bash	Opens an interactive shell inside a running container
docker tag <source>:<tag> <repo>/<image>:<tag>	Retags an image for registry compatibility
docker login	Authenticates with Docker Hub or another registry
docker push <repo>/<image>:<tag>	Pushes a Docker image to a container registry

Challenges & Outcomes

Technical Challenges and Solutions

Key Technical Challenges

Resolving environment and runtime dependency issues between host system and container
Correctly configuring port mapping and container networking for external access

How They Were Resolved

Encapsulated the complete Node.js runtime and dependencies within the Docker image using a well-defined Dockerfile
Validated port exposure and host-to-container port mapping through iterative container runs and testing

Production-Grade Implementation

Docker File: Blueprint for building a docker images
Docker Image: Packed software; Template for running a docker containers
Container: Runtime environment where we run our applications

Assets & References

Code, diagrams, study material

GitHub Repository

Source code repository containing the Dockerized Node.js application and Docker configuration files.

Access Repository

Study Material Resources

Click the button below to open the study materials

Request Study Material
